COTS PRODUCTS > COTS DIGITAL / ANALOG PRODUCTS > MIL-STD-1553B AVIONICS PRODUCTS > AT-PC/104PLUS-1553-IP

PC104PLUS bus compatible
IPC1553 - Next generation 1553 core
Programmable as Bus Controller or Remote Terminal or Monitor Terminal
Up to 3 Dual Redundant MIL-STD-1553B channels
31 Remote Terminal Controls
Direct or Transformer Coupled
Software Driver support for a host of Operating systems / Environments


The AT-PC104PLUS-1553 card provides a flexible, Single function, dual redundant MIL-STD-1553B interface to the PC/104PLUS embedded bus. It provides the highest level of performance & flexibility for MIL-STD-1553B protocol on the PC/104PLUS bus. The AT-PC104PLUS-1553 offers Simulation, Monitoring functions. The card comes integrated with powerful software that reduces application development time. All data bus functionality is supported by our advanced API (Application Programming Interface).

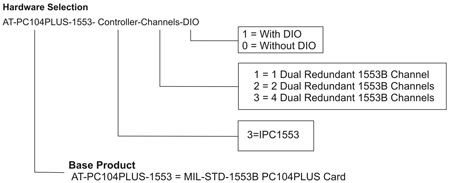

Hardware

The AT-PC104PLUS-1553 card’s single function architecture emulates a Bus Controller or 31 Remote Terminal or Monitor Terminal modes. Standard features include Programmable coupling and bus termination, extensive BC frame structures, error detection, RT Status Bit and Mode Code responses, along with advanced BC functionality. Polling and interrupt generation is also provided. The advanced BC architecture provides a high degree of flexibility and autonomy by providing Major and Minor frame schedule control, streaming data interface, asynchronous message insertion, bulk data transfers, double buffering, message retry, bus switching strategies, and data logging, and fault reporting. The RT architecture provides flexibility in meeting all common MIL-STD-1553 protocols while emulating up to 31 RT addresses on one 1553 channel. The card includes a message monitor mode and a combined Multi-RT/ MT mode where the MT will monitor all 1553 communications on the bus, including the 1553 channel's assigned RT addresses. The Bus Monitor mode provides complete error detection on 100% fully loaded buses, advanced error detection to isolate faults at a particular word with in a 1553 message.

Transformer and Direct Coupling

The card can be configured to work either in the transformer-coupled mode or in the direct-coupled mode. Jumpers are provided on the card to select the mode. It is configured to work in the transformer-coupled mode by default.

Software

The AT-PC104PLUS-1553 software includes:

> Bus Monitor

> Drivers & APIs

Bus Monitor
Record and replay of data
Replay with rate selection
Message identifier
Multi console at a time
Bus ideal time analyzer
Filtering option up to sub address
Message sampling option
Drivers & APIs
The cards come with a powerful set of library functions to access the entire MIL-STD-1553B functionality. Drivers are designed in a modular fashion, consisting of component functions and application functions. The user’s test program can be developed with few calls to the driver by using the set of application functions provided. Driver and high-level API libraries for Windows XP are available. Sample programs for BC, RT, MT modes are included.
MIL-STD-1553
Programmable as Bus Controller or Remote Terminal or Monitor Terminal
Up to 3 Dual Redundant MIL-STD-1553B channels
Message formats BC-RT, RT-BC, RT-RT, Broadcast, System Control
Direct or Transformer coupled
Software Programmable RT Address
IPC1553
IPC1553 is AT’S next generation 1553 Core, with BC, Multi-RT, MT, BC/MT, Multi-RT/MT operating modes
1553 Bus Controller
Automatic retries on alternate bus
Inter-message gap times up to 65.5ms
Programmable response timeout up to 130 µs
Minor/Major Frame Scheduling to Control timing of 1553 messages
Modify Messages or Data while BC is running
Detects and Reports 1553 Errors
Flexible support for data streaming or bulk data transfer
1553 Remote Terminal
Programmable command illegalization
31 Remote Terminal Controls
Programmable Single Message or double buffering or circular buffering
BUSY Bit programmable by sub address
Alphanumeric message ID
1553 Monitor Terminal
Word monitor per word basis
Selective message monitor & time stamping
Dynamic data update
Message Periodicity
Bus error status
Bus load
Unique Message identifier
Record and Replay option
Message identifier
Advanced Bus Error Detection to Isolate Bus Failures
Software Support
Driver and high-level API libraries for Windows XP
Sample applications provided
Physical
Standard PC/104PLUS card size (3.55in x 3.75in)
Environmental
Operating temperature: 0° C to +50° C
Storage temperature: -20° C to +70° C
Power
+5 +/- 5% VDC supply
Warranty
1 year limited warranty
