Arinc-429 Avionics Products

	Type II PC Card
	Based on 16 bit PCMCIA Architecture
	DDC Controller
	Arinc429 controller configured as 2Tx / 4Rx channels
	Configurable for High Speed/Low Speed
	128 x 32 Static RAM Interface
	Programmable interrupts
	Two 32 (words deep) x 32 (bit) Transmit FIFO
	Built-in Fault Detection Circuitry
	IEEE 1384 XMC mechanicals
	Windows driver support included with card

The AT-PCC-429 card provides a flexible, powerful ARINC429 avionics data bus interface to the PC card socket. The card can be used with a laptop, notebook PC, a desktop PC, or any other device that has a PC Card interface. The AT-PCC-429 is based on Type II PC Card architecture. The card is designed to transmit and receive messages up to 6 channels. Each channel is software configurable for high or low speed (12.5k or 100k bits per second) and ARINC429 protocol requirements. The ARINC data word can be decoded and sorted based on the Label and SDI bits and stored in RAM and/or FIFO’s. The card is integrated with powerful software that reduces development time. All data bus functionality is supported by our advanced API (Application Programming Interface) and VIP (Virtual Instrument Panel).

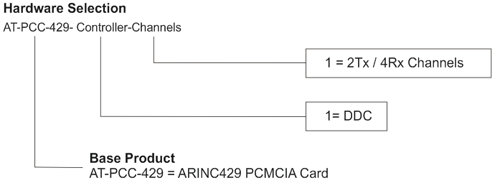

Hardware

The AT-PCC-429 card can be configured with single ARINC429 controller from DDC, which is configured as 2 Transmit and 4 Receive channels. The controller has 128 x 32 bit static RAM, four 32 (words deep) x 32 (bit) Receive FIFO’s and two 32 (words deep) x 32 (bit) transmit FIFO’s. Look-up tables loaded into RAM enable the controller’s receive circuitry to filter and sort incoming data by label and destination bit as well as provide multilevel data specific interrupts or hardware triggers.

Software

The AT-PCC-429 software includes :

> Virtual Instrument Panel

> Drivers & APIs

Virtual Instrument Panel

The AT-PCC-429 card can be configured with single ARINC429 controller from DDC, which is configured as 2 Transmit and 4 Receive channels. The controller has 128 x 32 bit static RAM, four 32 (words deep) x 32 (bit) Receive FIFO’s and two 32 (words deep) x 32 (bit) transmit FIFO’s. Look-up tables loaded into RAM enable the controller’s receive circuitry to filter and sort incoming data by label and destination bit as well as provide multilevel data specific interrupts or hardware triggers.

Drivers & APIs

The card comes with a powerful set of library functions to access the entire ARINC429 functionality. The drivers are designed in a modular fashion consisting of component functions and application functions. The user’s test program can be developed with few calls to the card driver, by using the set of Application functions provided. Driver and high-level API libraries for Windows XP are available. Sample application programs are included.

ARINC429 Interface

	Type II PC Card
	16 bit PCMCIA Architecture
	DDC Controller
	2Tx / 4Rx ARINC429 Channel
	128 x 32 bit Static RAM interface
	Programmable Interrupts
	Configurable Bit Format Control
	Built-in Fault Detection Circuitry

Transmit Interface

	Programmable 12.5/100KHz bit rate
	Two 32 (words deep) x 32 (bit) Transmit FIFO’s
	Independent data transmit by each channel
	Programmable data transmit rate for each channel
	Transmit FIFO Status Indicators

Receive Interface

	Four 32 (words deep) x 32 (bit) Receive FIFO’s
	Receive data rates can be programmed for channel 0 and 1 independent of channel 2 and 3 in each ARINC429 controller
	Reducing Receive Data Latency
	Filtering & Sorting of data
	Storage of data
	Parity Error Checking & Reporting
	Receive FIFO status indicator

Diagnostics

	Testing of Memory Elements
	Testing Transmit/Receive functions
	Wraparound Test for each channel
	Interrupt Function Testing

Error Conditions

	Sequence Error
	Address Error
	FIFO Overflow Error
	Receive Data Parity Error
	ARINC Clock Error

Software Support

	Driver and high-level API libraries for Windows XP
	A powerful 'Virtual Instrument Panel' developed to mimic the physical card features & capabilities for interactive control & monitoring
	Sample applications provided

Physical

	Type II PC Card
	Card dimensions- 54.0 x 85.6 x 5 mm

Environmental

	Operating temperature: 0º C to +50º C
	Storage temperature: -20º C to +70º C

Power

+ 5 VDC

Warranty

1 year limited warranty
